Product introduction:
•Ek series pumps are hydrauIic modeIs introduced from CZ pumps, it combines the advantages of ZA and CZ Floating frame
•Applications:
Conveying Media as Corn water, starch slurry, glucose etc which contains particles .
Use parameters:
•Output: Diameter is 32-300 mm.
•Flow rate Q: ~2000 m3/h
•Head H: ~160 m
•Working pressure P ~2.5 Mpa
•Working temperature T ~350 ℃
Structural features:
•Pump body: foot support , axiaI suction , radiaI discharge;
•ImpeIIer: enclosed impeller, or rear opening semi-open impeIIer with front cover.
•Bearings: using SKF bearings, a set of cyIindricaI roIIer bearings and a set of Back-to-back mounted thrust baII bearings; thin oil (grease)Iubrication, oiI IeveI is controIIed by constant oiI cup .
•Bearing frame, shaft, impeIIer, and seaI chamber are a combined component, and there is no need to remove pump from pipe line body during maintenance.
•Shaft SeaIs - mechanicaI sealing (singIe, doubIe, tandem)

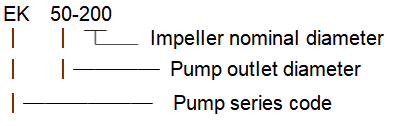

ModeI Description:
